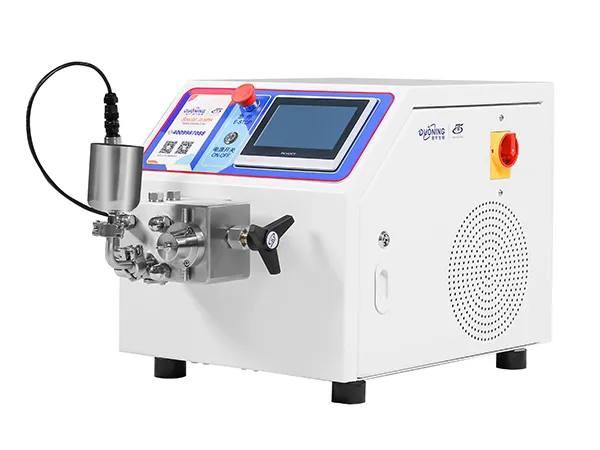

    Laboratory Homogenizer

    Designed for laboratory-scale nanoemulsion and cell disruption applications in R&D and small-batch production

    ATS laboratory-type high-pressure homogenizer is designed for laboratory-scale processing of nanoparticles, nanodispersions, nanoemulsions, and cell disruption in R&D and small-batch production. This homogenizer can also be used in small batch processing of milk, dairy products, juices, beverages, and other liquid foods. Four models are available to provide precise solutions for different application scales and R&D requirements.

    Request a Quote
    Product Specifications
    Models AH-NANO AH-1500 AH-BASIC AH-BASIC 30
    Flow Rate (L/H) 5-10 5-15 10 20-30
    Min. Volume (ml) 10 25 25 40
    Working Pressure (bar) 0-1800 0-1500 0-1500 0-1000
    Power (kW) 1.5 1.5 1.5 2.2
    Dimensions (mm) 450*720*475 450*720*475 450*720*475 840*525*480
    Weight (kg) 128 130 130 168
    Key Features Laboratory high-pressure nano homogenizer engineered for R&D applications in small-volume,high-viscosity,and high-value samples. Specialized homogenizer for cell disruption and nanoemulsion homogenization. Efficient cooling performance provides a clear advantage in the biological cell disruption process. Versatile laboratory homogenizer,especially suited for costly pharmaceutical raw materials and excipients. Larger-capacity benchtop homogenizer designed for laboratory settings.
    Features
    • Purpose-built for small-batch sample processing with zero material residue, ideal for laboratories or small R&D environments
    • Direct sample feeding without venting
    • Built-in temperature-control module ensures sample stability during processing
    • Intuitive and user-friendly 7-inch high-resolution touchscreen with visual pressure trends graph and alarms
    • Wetted parts made of 316L or higher-grade stainless steel, offering high corrosion and heat resistance, ensuring high-performance and stability for long-term use
    • Multiple over-pressure protections to ensure reliability and safe operations
    • CE certified and GMP compliant, while supporting CIP/SIP cleaning

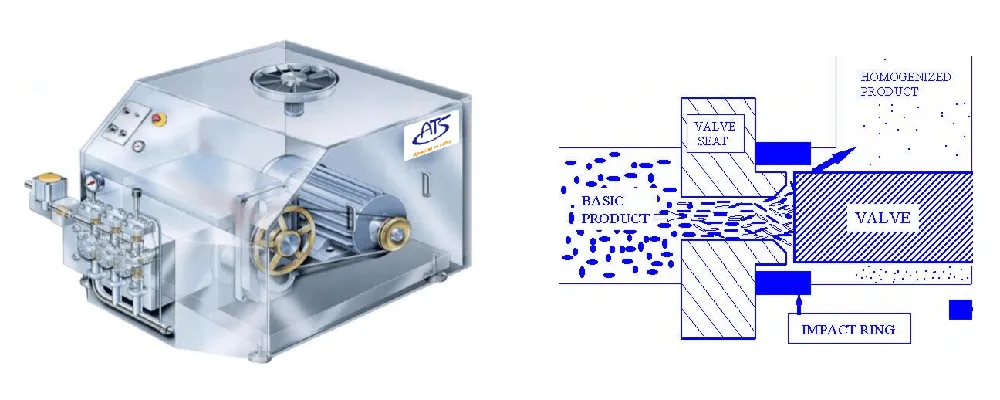

    Working Principle

    The homogenizers use a motor-powered high-pressure plunger pump. The pump pressurizes the sample and forces it through a narrow homogenizing valve, where a sharp pressure drop (up to 2000 bar) generates intense shear, turbulence, and cavitation to achieve homogenization, dispersion, and disruption.

    Working Principle
    Related Cases
    • ForDoz FDA Approval Cell disruption of Pichia pastoris yeast
    • Tokyo University Collagen homogenization
    • Shenyang Pharmaceutical University Cell disruption of E. coli bacteria
    • ForDoz FDA Approval Nanoemulsion preparation
    • Tokyo University Slurry blending dispersion of carbon nanotubes (CNTs).
    Our High Pressure Homogenizer
    Ready to Start Your Project?

    Let us help you find the right nano-processing equipment to support your R&D, scale-up, and production needs.
    Other Products

    No. The laboratory scale homogenizer is easy to operate, requiring no special training. It is equipped with an intuitive, user-friendly 7-inch touchscreen with a high-resolution color display that shows pressure trend graphs and alarm information.

    The laboratory high-pressure homogenizer is equipped with a built-in temperature control system to manage the temperature during processing effectively. Some homogenizer models, such as the AH-1500, also feature enhanced cooling performance to prevent heat-induced denaturation.

    The laboratory scale high-pressure homogenizer is motor-driven. The high-pressure plunger pump will pressurize the sample and force it into a narrow valve with a significant pressure difference up to 2000 bar. The energy generated by the instant drop in pressure achieves homogenization, dispersion, and disruption.
