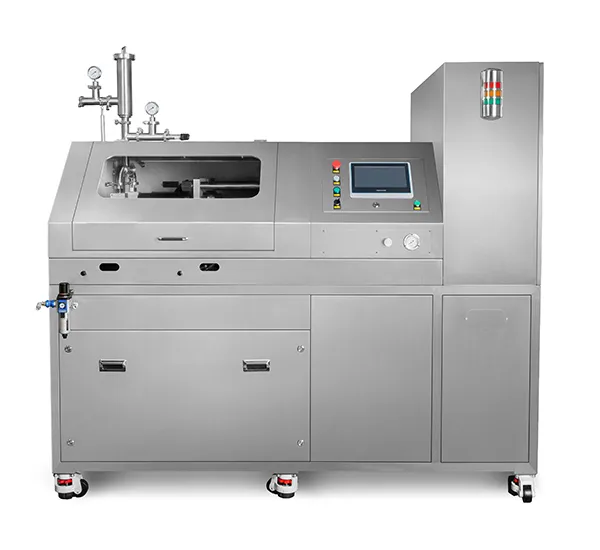

Industrial Micro-Jet Homogenizer (Microfluidic Homogenizer)
High Pressure Homogenizer

Industrial Micro-Jet Homogenizer (Microfluidic Homogenizer)

High shear fluid processor for continuous large-scale production of nanoemulsions in pharmaceutical, food, and chemical manufacturing

ATS industrial micro-jet homogenizer is the core equipment for continuous large-scale nano-processing. Featuring diamond interaction chamber (DIXC) technology, this homogenizer provides stable operation under working pressure of over 30,000 psi, ensuring each batch production achieves nano-scale precision and narrow uniform nanoparticle distribution. Designed with a robust structure to support 24/7 continuous operation, while meeting the strict demands of food & beverage, pharmaceutical, chemical production lines, and other industries. This micro-jet homogenizer ensures effective output and stable product quality improvement, achieving overall cost reduction and enhancing product core competitiveness.

Request a Quote
Product Specifications
Models AMH-M120 AMH-M240 AMH-M480
Flow Rate (L/H) 80-120 200-240 400-480
Min. Volume (ml) 400 400 400
Max. Pressure 207 MPa/2070 bar/30,000 psi 207 MPa/2070 bar/30,000 psi 207 MPa/2070 bar/30,000 psi
Chamber Configuration Main 75Y-6/Z100 + auxiliary Z400 (optional) Main 75Y-6/Z100 + auxiliary Z400 (optional) Main 75Y-6/Z100 + auxiliary Z400 (optional)
Operation Mode 380V hydraulic 380V hydraulic 380V hydraulic
Power (kW) 18.5 30 55
Dimensions (mm) 1800*940*1750 2110*1300*1892 2110*1300*1892
Features
  • This micro-jet homogenizer is a new generation of high-pressure homogenizer, using unique diamond microchannel ultra-high-speed jet technology to achieve smaller and more uniform nano-scale particle sizes homogenization compared with ordinary high-pressure homogenizers. This micro-jet homogenizer is ideal for high-value applications requiring uniform nano-scale particle sizes across various industries.
  • Utilizing Diamond Interaction Chamber (DIXC) as the core component of the micro-jet homogenizer. Unlike regular high-pressure homogenizers with adjustable gap valves, the microchannels within DIXC are of fixed size and cannot be altered. Consequently, the micro-jet homogenizer can maintain consistent homogenization conditions, facilitating the production of uniform-sized nanoparticles that ensure highly stable results across batches under consistent process parameters.
  • Linear scale-up production involves arranging multiple identical microchannels in parallel within the diamond interaction chamber of a micro-jet homogenizer. By using multiple microchannels with the same performance as those in lab-scale homogenizers and employing a high-power intensifier pump, the R&D process can be scaled linearly. This allows industrial-scale homogenizers to increase output without changing the homogenization quality, a feat difficult for standard high-pressure homogenizers. As a result, many high-requirement scenarios choose micro-jet homogenizers to avoid scale-up production problems after successful, costly labo-scale testing.
  • The micro-jet homogenizer uses hydraulic pressure intensification to generate homogenization power. Its hydraulic power unit can produce very high homogenization pressures (hundreds of MPa) while operating at relatively low hydraulic pressures (a minimum of dozens of MPa). Under these conditions, the hydraulic power unit can run continuously and stably while still providing very high homogenization pressure. Compared to the complex high-frequency ultrasonic homogenizer with a connecting rod design used in ordinary high-pressure homogenizers, the hydraulic intensification system greatly reduces the equipment's failure rate, ensuring smooth and uninterrupted production.
Working Principle
Working Principle

The fluid sample is rapidly forced through the narrow gaps within the dispersion unit under high pressure. The sudden pressure drops generate extremely high-speed velocities, leading to intense turbulence, cavitation, shear forces, and jet flow, which break apart the particles, reducing them into a fine and uniform nano-scale homogeneous state. Furthermore, the hydraulic intensifier power mode can provide a stable pressure of up to 200 MPa.

Turbulence

Turbulence
Turbulence is caused by the mutual collisions of sample molecules due to cavitation.

Shearing

Shearing
Shearing in fluids occurs due to the friction between the molecules and the wall of the dispersion unit, viscosity, etc.

Cavitation

Cavitation
Cavitation refers to the cavities or bubbles created in fluids. If the velocity increases, the cohesive force between molecules and the voids or bubbles in the liquid rapidly collapses, generating a shock wave.

Our Micro-Jet Homogenizer
Ready to Start Your Project?

Let us help you find the right nano-processing equipment to support your R&D, scale-up, and production needs.

Other Products

Through the fixed-size diamond interaction chambers (DIXC), hydraulic intensifier, and reinforced structure, this industrial homogenizer ensures a stable output and consistent nano-level dispersion under 30,000 psi. This ensures continuous operation with nano-size precision and more uniform homogenization for each batch, especially for food & beverage, pharmaceutical, and other industries.

The industrial-scale homogenizer utilizes a diamond interaction chamber under a stable 207 MPa pressure. The chamber's ultra-high-speed jet technology enhances the shearing and turbulent forces, while the wear-resistant diamond material ensures nano-scale homogenization when processing hard materials, minimizing component wear.

Compared to regular high-pressure homogenizers, the industrial micro-jet homogenizers can avoid the scale-up production risks. It uses a multiple microchannel parallel design and the diamond interaction chamber ultra-high-speed jet technology to achieve linear scale-up without altering the homogenization performance.
