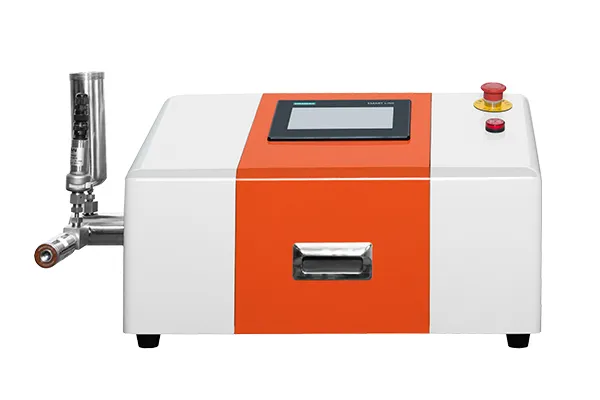

    Laboratory Micro-Jet Homogenizer (Microfluidic Homogenizer)

    High shear fluid processor for laboratory-scale nanoparticle, liposome, and lipid-based drug formulation

    This micro-jet homogenizer is a laboratory-scale high-shear fluid processor designed for nanoscale homogenization processes requiring stringent particle-size control.

    Request a Quote
    Product Specifications
    Models AMH-MINI AMH-Nano
    Min. Volume (ml) 15 20
    Flow Rate (L/H) 3-5 5-8
    Working Pressure (bar) 0-2500 0-2070
    Power (kW) 2.5 2.5
    Chamber Configuration Main 75Y/Z63 + auxiliary Z300 (optional) Main 75Y/Z75 + auxiliary Z300 (optional)
    Dimension (mm) 709*419*345 945*445*345
    Weight (kg) 50 60
    Features
    • This micro-jet homogenizer is a new generation of high-pressure homogenizer, using unique diamond microchannel ultra-high-speed jet technology to achieve smaller and more uniform nano-scale particle sizes homogenization compared with ordinary high-pressure homogenizers. This micro-jet homogenizer is ideal for high-value applications requiring uniform nano-scale particle sizes across various industries.
    • Utilizing Diamond Interaction Chamber (DIXC) as the core component of the micro-jet homogenizer. Unlike regular high-pressure homogenizers with adjustable gap valves, the microchannels within DIXC are of fixed size and cannot be altered. Consequently, the micro-jet homogenizer can maintain consistent homogenization conditions, facilitating the production of uniform-sized nanoparticles that ensure highly stable results across batches under consistent process parameters.
    • Linear scale-up production involves arranging multiple identical microchannels in parallel within the diamond interaction chamber of a micro-jet homogenizer. By using multiple microchannels with the same performance as those in lab-scale homogenizers and employing a high-power intensifier pump, the R&D process can be scaled linearly. This allows industrial-scale homogenizers to increase output without changing the homogenization quality, a feat difficult for standard high-pressure homogenizers. As a result, many high-requirement scenarios choose micro-jet homogenizers to avoid scale-up production problems after successful, costly labo-scale testing.
    • The micro-jet homogenizer uses hydraulic pressure intensification to generate homogenization power. Its hydraulic power unit can produce very high homogenization pressures (hundreds of MPa) while operating at relatively low hydraulic pressures (a minimum of dozens of MPa). Under these conditions, the hydraulic power unit can run continuously and stably while still providing very high homogenization pressure. Compared to the complex high-frequency ultrasonic homogenizer with a connecting rod design used in ordinary high-pressure homogenizers, the hydraulic intensification system greatly reduces the equipment's failure rate, ensuring smooth and uninterrupted production.

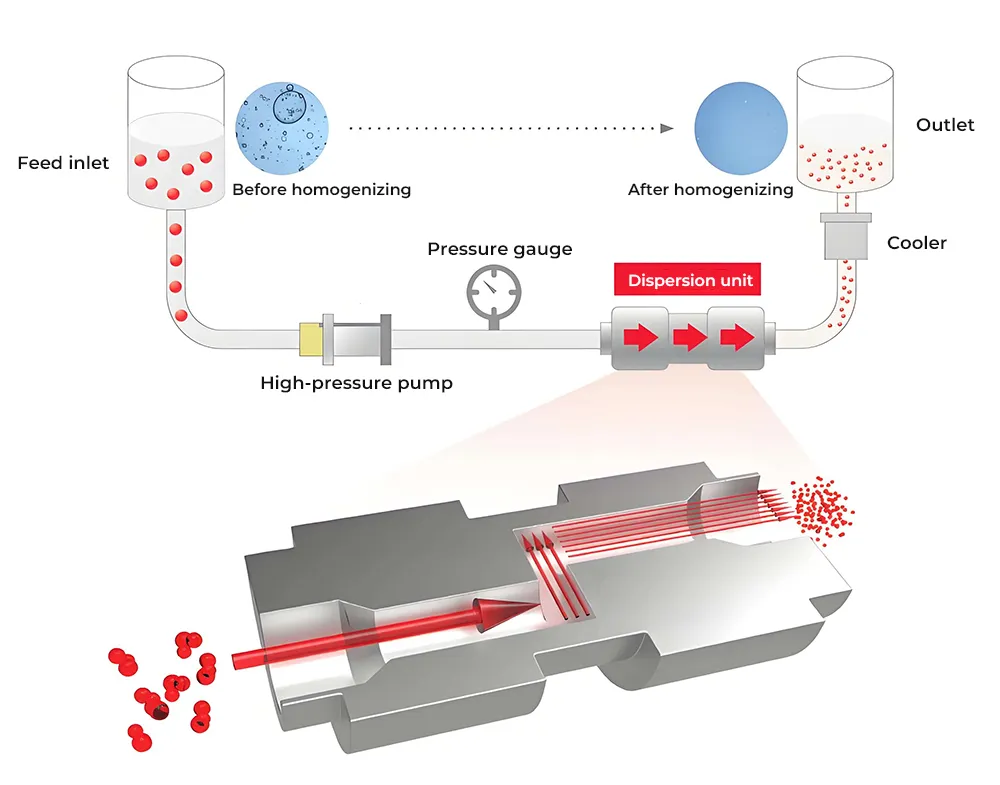

    Working Principle
    Working Principle

    The fluid sample is rapidly forced through the narrow gaps within the dispersion unit under high pressure. The sudden pressure drops generate extremely high-speed velocities, leading to intense turbulence, cavitation, shear forces, and jet flow, which break apart the particles, reducing them into a fine and uniform nano-scale homogeneous state. Furthermore, the hydraulic intensifier power mode can provide a stable pressure of up to 200 MPa.

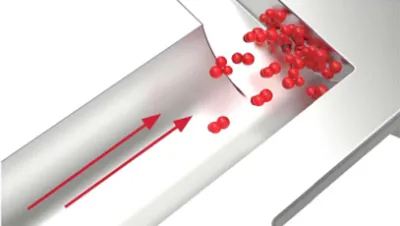

    Turbulence

    Turbulence
    Turbulence is caused by the mutual collisions of sample molecules due to cavitation.

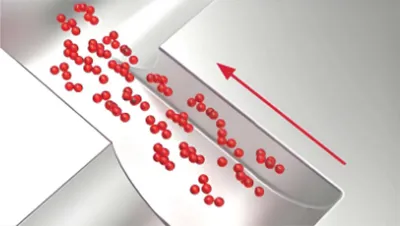

    Shearing

    Shearing
    Shearing in fluids occurs due to the friction between the molecules and the wall of the dispersion unit, viscosity, etc.

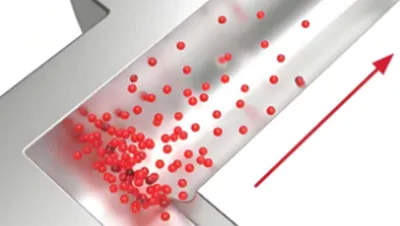

    Cavitation

    Cavitation
    Cavitation refers to the cavities or bubbles created in fluids. If the velocity increases, the cohesive force between molecules and the voids or bubbles in the liquid rapidly collapses, generating a shock wave.
    Our Micro-Jet Homogenizer
    Ready to Start Your Project?

    Let us help you find the right nano-processing equipment to support your R&D, scale-up, and production needs.

    Other Products

    The diamond interaction chamber (DIXC) in the micro-jet homogenizer allows linear scale-up production by arranging multiple identical microchannels in parallel. The industrial and laboratory scales homogenizer uses the same configurations to achieve linear scaling with the same homogenization results.

    Yes. All wetted parts (pump, chamber, pipelines) are easily detachable. The micro-jet homogenizer supports autoclave sterilization and CIP cleaning, enabling quick cleaning and sterilizing processes and preventing cross-contamination.

    The standard configuration of the laboratory micro-jet homogenizer supports CIP cleaning. SIP sterilization is available through customization to ensure it meets the high aseptic requirements, such as vaccine research and development.
